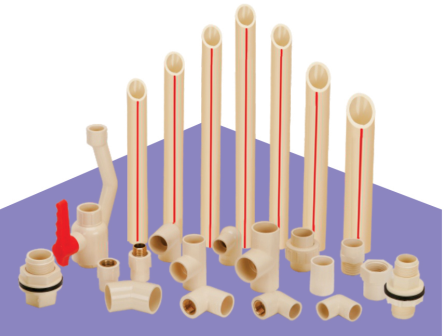

CPVC
Pipes
Durable, corrosion-resistant pipes for plumbing, drainage, and irrigation.
| SIZE (INCH) | OD (mm.) | SDR 11 Weight As Per 3 Mtr. | SDR 13.5 Weight As Per 3 Mtr. |
|---|---|---|---|
| 3/4" | 20 (+/- 0.10) | 0.600 grm - 50 NOS. (30.000 kgs) | 0.500 grm - 50 NOS. (25.000 kgs) |
| 1" | 25 (+/- 0.10) | 0.980 grm - 30 NOS. (29.400 kgs) | 0.800 grm - 30 NOS. (24.000 kgs) |
| 1.1/4" | 32 (+/- 0.10) | 1.450 kgs - 25 NOS. (36.250 kgs) | 1.200 kgs - 25 NOS. (30.000 kgs) |
| 1.1/2" | 40 (+/- 0.10) | 2.050 kgs - 15 NOS. (30.750 kgs) | 1.700 kgs - 15 NOS. (25.500 kgs) |
| 2" | 50 (+/- 0.10) | 3.350 kgs - 10 NOS. (33.500 kgs) | 2.850 kgs - 10 NOS. (28.500 kgs) |
| SIZE (INCH) | OD (mm.) | SDR 11 Weight As Per 5 Mtr. | SDR 13.5 Weight As Per 5 Mtr. |
|---|---|---|---|
| 3/4" | 20 (+/- 0.10) | 1.000 kgs - 50 NOS. (50.000 kgs) | 0.835 grm - 50 NOS. (41.750 kgs) |
| 1" | 25 (+/- 0.10) | 1.635 kgs - 30 NOS. (49.050 kgs) | 1.335 kgs - 30 NOS. (40.050 kgs) |
| 1.1/4" | 32 (+/- 0.10) | 2.420 kgs - 25 NOS. (60.500 kgs) | 2.000 kgs - 25 NOS. (50.000 kgs) |
| 1.1/2" | 40 (+/- 0.10) | 3.420 kgs - 25 NOS. (85.500 kgs) | 2.840 kgs - 25 NOS. (71.000 kgs) |
| 2" | 50 (+/- 0.10) | 5.585 kgs - 10 NOS. (55.850 kgs) | 4.750 kgs - 10 NOS. (47.500 kgs) |
